•  API จะใช้กับ CanvasRenderingContext2D
• Object นี้ได้มาจาก canvas.getContext("2d")

<p>

  This is a red square: <canvas id="square" width="10" height="10"></canvas>.

</p>

<p>

  This is a blue circle: <canvas id="circle" width="10" height="10"></canvas>.

  <script>

    let canvas = document.querySelector("#square"); // Get first canvas element

    let context = canvas.getContext("2d"); // Get 2D drawing context

    context.fillStyle = "#f00"; // Set fill color to red

    context.fillRect(0, 0, 10, 10); // Fill a square. Start point is the top left corner.fillRect(startX, startY, width, height)

    canvas = document.querySelector("#circle"); // Second canvas element

    context = canvas.getContext("2d"); // Get its context

    context.beginPath(); // Begin a new "path"

    context.arc(5, 5, 5, 0, 2 * Math.PI, true); // Add a circle to the path. arc(centeX, centerY, radius, startAngle, endAngle, counterclockwise)

    context.fillStyle = "#00f"; // Set blue fill color

    context.fill(); // Fill the path

  </script>

</p>

  context.beginPath(); // Start a new path

  context.moveTo(100, 100); // Begin a subpath at (100,100)

  context.lineTo(200, 200); // Add a line from (100,100) to (200,200)

  context.lineTo(100, 200); // Add a line from (200,200) to (100,200)

  context.fill(); // Fill a triangular area

  context.stroke(); // Stroke two sides of the triangle

• ใช้ closePath() เพื่อปิด curve
• stroke() กับ fill() จะให้ผลกับ subpath ทั้งหมด ใน path ปัจจุบัน
• ถ้าจะเริ่ม path ใหม่ต้องใช้ beginPath()

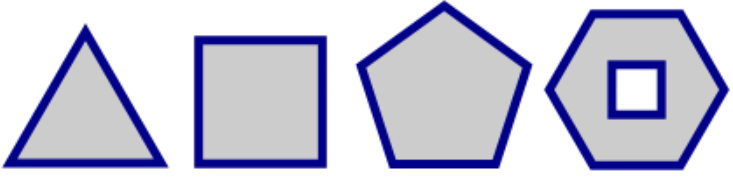

• fill() จะเติมสีบริเวณที่อยู่ใน path โดยใช้ non zero winding rule (ดูรูปหกเหลี่ยมด้านล่าง)

<p>

  <canvas

    id="canvas"

    width="600"

    height="200"

    style="border: 1px solid black"

  ></canvas>

</p>

<script>

  // Define a regular polygon with n sides, centered at (x,y) with radius r.

  // The vertices are equally spaced along the circumference of a circle.

  // Put the first vertex straight up or at the specified angle.

  // Rotate clockwise, unless the last argument is true.

  function polygon(c, n, x, y, r, angle = 0, counterclockwise = false) {

    c.moveTo(

      x + r * Math.sin(angle), // Begin a new subpath at the first vertex

      y - r * Math.cos(angle),

    ); // Use trigonometry to compute position

    let delta = (2 * Math.PI) / n; // Angular distance between vertices

    for (let i = 1; i < n; i++) {

      // For each of the remaining vertices

      angle += counterclockwise ? -delta : delta; // Adjust angle

      c.lineTo(

        x + r * Math.sin(angle), // Add line to next vertex

        y - r * Math.cos(angle),

      );

    }

    c.closePath(); // Connect last vertex back to the first

  }

  // Assume there is just one canvas, and get its context object to draw with.

  let c = document.querySelector("canvas").getContext("2d");

  // Start a new path and add polygon subpaths

  c.beginPath();

  polygon(c, 3, 50, 70, 50); // Triangle

  polygon(c, 4, 150, 60, 50, Math.PI / 4); // Square

  polygon(c, 5, 255, 55, 50); // Pentagon

  polygon(c, 6, 365, 53, 50, Math.PI / 6); // Hexagon

  polygon(c, 4, 365, 53, 20, Math.PI / 4, true); // Small square inside the hexagon

  // Set some properties that control how the graphics will look

  c.fillStyle = "#ccc"; // Light gray interiors

  c.strokeStyle = "#008"; // outlined with dark blue lines

  c.lineWidth = 5; // five pixels wide.

  // Now draw all the polygons (each in its own subpath) with these calls

  c.fill(); // Fill the shapes

  c.stroke(); // And stroke their outlines

</script>
